👩‍💻Embedding API

This section describes how to embed a report in your website or your webapp. In order to do so you need to be able to modify your app's code as well as having admin access to Whaly.

Setting up your report for embedding

The above steps will show you how to generate "Signed URLs" that are a secure way to embed your dashboards into your applications to share data with your customers!

First of all go to Setting > Org admin > General Settings for your org and copy your Client Secret as well as Org Slug you'll need it later.

Getting your client secret

Then you need to get your Embed Token on the report you want to embed.

In order to do so you need to open the report you wish to embed and click on the share button. Once you see the drawer, you can copy your Embed Token, you'll need it later.

Get your embed token

Now you are all set, we can start writing code 🤓

Embed reports in your app

In order to secure your dashboards and to make sure that nobody can use your embed on their own website, we require you to generate and sign a JSON Web Token.

This JWT token will be used to generate your Signed URL. This way we ensure that only the owner of the Client Secret can create Signed URLs.

In order to avoid leaking your Client Secret, the JWT generation need to be done on your server side applications.

If you include your Client Secret in your Web App, you expose it to anyone reading the code of your webpage, which is very dangerous!

In order to create a signed JWT token, you can check the following code example:

// Example for a webserver running in Node.js
// The same algorithm and JWT librairies needs to be ported in your backend programming language (PHP, Python, Go, ...))

import jwt from 'jsonwebtoken';

// This routine must happen on server side as your secret should remain secret
const embedToken = "<MY_EMBED_TOKEN>";
const clientSecret = "<MY_CLIENT_SECRET>";
const orgSlug = "<MY_ORG_SLUG>";

// We require you to generate a payload with the default filters you want to pass
// if you don't want to pass filters just input an empty object {}
// the filter payload is an object which keys are the apiName of the filter
// and the value is the value that you want to pass

const payload = {
    filters: {
        myFilter: 1
    },
    expiration_date: Date.now() + 24 * 60 * 60 * 1000 // valid for 24h
};

// Generate and sign your JWT, please use the HS256 algorithm
const myToken = jwt.sign(payload, clientSecret);

// Generate the embed url
const embed_url = `https://app.whaly.io/${orgSlug}/embed/report/${embedToken}?token=${myToken}`

You can then render your iFrame using the templating system you want (React / Vue.js / ...)

<iframe src="<%= embed_url %>"
  frameborder="0"
  style="width: 100%;height: 600px"
  allowfullscreen>
</iframe>

Access your filters API Name

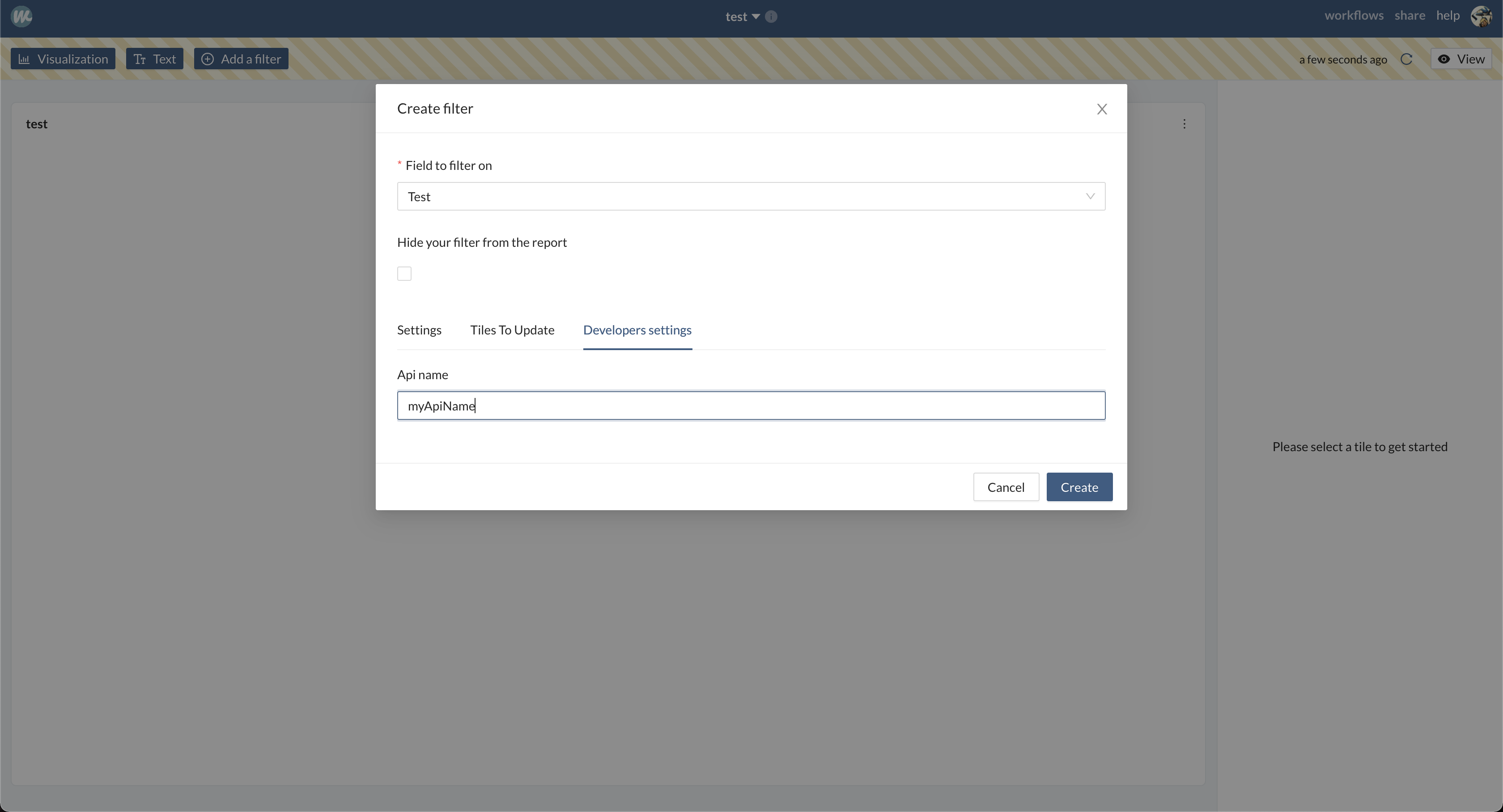

In order to set and retrieve your filters API Name you can edit your filter and click on the developer tab and set your apiName. Please note that filters API Name must be unique for a given report and are not set by default.

Setting an API Name

JWT Params

You can encode several parameters in your JWT such as

Name	Is Required	Value	Description
filters	true	FilterPayload	You can control any filter values through this payload
expiration_date	true	Timestamp	This value indicates when your token will stop be accepted
disable_drills	true	Boolean	This value helps you disable all drills by default on the dashboard

FilterPayload

The filter payload is an object that takes for keys the filter api name and as value depending on the filter type.

{
    <filterApiName>: FilterValuePayload
}

FilterValuePayload

For numeric filters you can pass one numeric (float or int) or an array of numerics

{
    myNumeric: 1.2,
    myNumericArray: [4.21, 1,337]
}

For string filters you can pass on string or an array of string

{
    myString: "rick",
    myStringArray: ["rick", "morty"]
}

For dates, you can either pass an array of 2 dates or a more complex object to describe your operation.

Carefull dates must be passed as per the ISO8601 standard.

Passing dates as an array

 {
    myDate: ["2021-01-01T00:00:00.000Z", "2021-12-01T00:00:00.000Z"]
 }
